Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 24t mesh in China. With abundant experience, we warmly welcome you to wholesale the newest 24t mesh from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Bihong Screen Mesh for Oval Screen Printing Machine, High Tension & Low Elongation for Fine Printing
Pearl / Glitter / Sequin Special Paste Screen Printing - Process Guide
Special paste mixed with shimmer particles - pearl luster, glitter sparkle, sequin flash effect
Garment: Women's wear, stage costume, children's wear | Standard screen printing process (Attention: Screen mesh count)
Durability: Medium / Medium / Medium | Vietnam garment industry
|
Item |
Description |
|
Material |
Polyester (PET) mono filament |
|
Available Mesh Count |

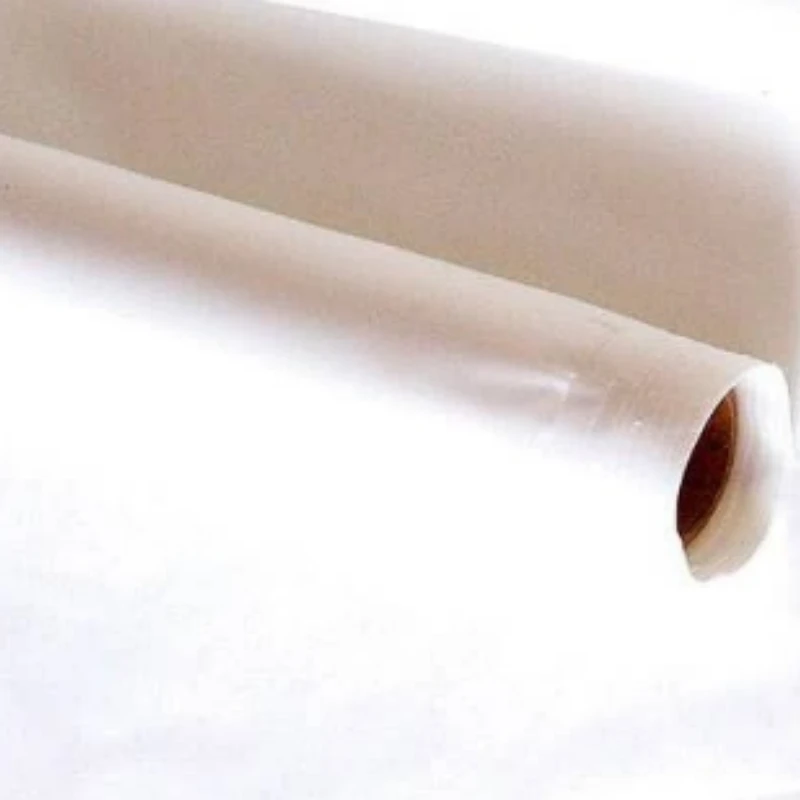

24T Mesh,32T Mesh,43T Mesh,48T Mesh,55T Mesh,62T Mesh,72T Mesh |
|
Color |
White |
|
Compatible Frame Sizes |
700×1000mm, 800×1180mm, 900×1280mm, custom cut size |
|
Applicable Inks |
Water-based ink, plastisol, high-density, discharge, puff, reflective ink |
Oval Screen Printing Machine
Printable Products
1. Garment cut pieces: T-shirts, hoodies, pants, socks, the main application of this machine.
2. Ready-made garments: Print directly on finished garments mounted on pallets, no need to cut fabric in advance.
3. Shoes & hats: Flat areas of caps and shoe uppers.
4. Other flat textiles: Umbrellas, bags, home textiles such as cushions and throw pillows.
Raw Materials
1. Special printing binder paste (transparent base paste)
2. Functional particles: Pearl powder, glitter powder, sequin flakes
3. Auxiliaries: Cross-linker, thickener, moisturizer
4. Fabric: Cotton, cotton blend, polyester for ladies' garment, stage & kids clothing
5. Equipment: Screen printing table, screen frame, squeegee, tunnel dryer, heat press
Limitations: Not for roll-to-roll fabric printing. Not recommended for extra large cut pieces due to single-head pallet support which may cause instability.
Process Flow
1. Separate color layers according to customer pattern, output film positive, make screen stencil.
2. Mesh count selection (critical note):
- Pearl paste (fine particles): 100 ~ 140T mesh
- Fine gold glitter powder: 60 ~ 80T mesh
- Large sequin flakes: 40 ~ 60T coarse mesh
3. Screen tension inspection, emulsion thickness adjustment.
1. Stir base binder paste evenly first.
2. Add pearl powder / glitter / sequin flakes by required ratio, gently stir slowly.
- Pearl powder: 8 ~ 15% by weight
- Glitter powder / sequin: 15 ~ 30% by weight
3. Add cross-linker (1 ~ 3%) to improve wash fastness, add moisturizer to prevent premature drying & screen blockage.
1. Inspect fabric: Remove oil stain, dust. Check fabric shrinkage.
2. Pre-print base layer (optional): Print white underbase paste on dark fabric to enhance brightness of shimmer effect.
3. Positioning: Fix cut piece on printing table, mark pattern position to avoid misalignment.
1. Mount screen above fabric, pour mixed special paste onto screen.
2. Print with squeegee at stable pressure & angle; 1 ~ 2 passes for sufficient ink deposit.
Two curing options for Vietnam factories:
1. Tunnel hot air dryer: 130 ~ 150°C, 90 ~ 180 seconds
2. Heat press curing: 140 ~ 150°C, 8 ~ 12 seconds
1. Let printed cut pieces fully cool down at room temperature.
2. Visual inspection items: Shimmer uniformity, missing print, pinholes, particle agglomeration, edge bleeding, sequin falling off.
3. Hand feel check: Avoid overly stiff prints, especially for children's wear & ladies fashion.
- Wash test: ISO 105 C06, check flake loss after repeated washing
- Dry & wet rub fastness test
- Hand feel & bending test (stage costume needs frequent bending)
Common Pain Points in Vietnam Garment Production
1. Screen clogging: Wrong mesh count is the top issue. Large sequins used on high mesh screen cause continuous blocking and low production efficiency.
2. Particle sedimentation: Paste not continuously stirred → uneven sparkle effect batch by batch.
3. Incomplete curing: Insufficient temperature / time → serious glitter drop after washing.
4. Hand feel issue: Over-thick printing layer, garment stiff, not suitable for close-fitting women's & kids wear.
5. Sequins sharp edge: Poor quality sequin flakes may irritate skin, strict requirement for children's wear.
Two Production Modes in Vietnam Factories
1. Table manual screen printing (common for small & medium orders): Manual station printing, flexible for fashion & stage custom patterns.
2. Automatic rotary screen printing (mass large orders): High speed, consistent print thickness for bulk children's wear & women's apparel.
Process Comparison Table
|
Type |
Finish |
Durability |
Material Compatibility |
Remarks |
|
Pearl special paste |
Soft pearlescent shimmer |
Medium |
Cotton, polyester blend, women & kids wear |
Fine particle, higher mesh available |
|
Glitter powder special paste |
Bright sparkling glitter |
Medium |
Cotton, polyester, stage costume |
Need medium coarse mesh |
|
Sequin flake special paste |
Strong flash large flake effect |
Medium |
Stage costume, fashion apparel |
Must use low coarse mesh, easy clogging |
