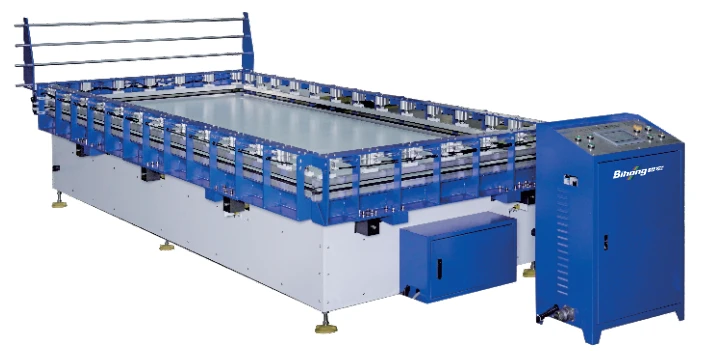

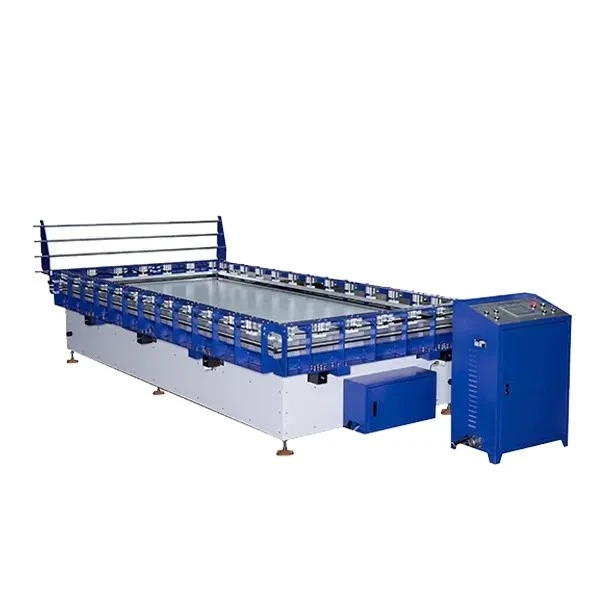

Automatic Screen Stretching Machine Basic

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic screen stretching machine basic in China. With abundant experience, we warmly welcome you to wholesale the newest automatic screen stretching machine basic from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.

1. Maximum stretching size:1500x3000mm.

2. Automatic Screen Stretching Machine Basic High capacity with minimum mesh consumption.

3. Remote control for all the stretching functions.

4. Adjustable Pneumatic screen stretcher stretching speeds for warp and weft directions.

5. No contact between frame and mesh during stretching process.

6. Easy setting of the desired stretching angle.

7. Multiple Automatic silk screen mesh stretcher frames can be made simultaneously.

8. The DUPLEX stretching damps are equipped with concave ball-bearings running in high-precision guide shafts made of stainless steel. During the stretching process, the stretching camps are capable of moving sideways in order to compensate a possible mesh extension.

9. Automatic stretching system via Touch-Screen terminal.

10. Commercial screen printing frame stretcher Special steel and aluminum construction, sturdy and durable.

Operating Principle
The automatic screen stretching machine is equipment used to tension mesh fabric onto aluminum screen frames for screen printing.

It adopts servo motor + pneumatic/hydraulic stretching structure. The mesh is clamped evenly by multiple groups of clamping jaws around four sides. The system sets tension parameters (N/cm) via the control panel. Servo drives each clamp to pull the mesh synchronously in X and Y directions until reaching the preset tension value. The machine maintains constant tension while adhesive is applied to bond the mesh firmly to the aluminum frame. After glue curing, excess mesh edges are cut off to complete the screen frame making.

The core is synchronized four-way constant tension stretching, which ensures uniform tension across the whole mesh surface. It avoids uneven tension caused by manual separate pulling.

1.  Constant & uniform tension: Servo closed-loop control keeps consistent tension in both warp and weft directions. Tension difference across one screen plate is minimal, effectively preventing mesh deformation, pattern distortion and register misalignment during printing.

2.  High stretching efficiency: One-key automatic stretching, saves manual pulling and adjustment time. Suitable for mass production of screen frames.

3.  Stable repeatability: Saved tension recipes can be recalled for repeated orders. Same mesh type uses identical tension parameters, ensuring consistency among batches of screen plates.

4.  Reduce labor reliance: Less operator skill requirement; new staff can operate after simple training, lowering human error.

5.  Wide tension adjustment range: Support different mesh counts and materials (polyester mesh, stainless steel mesh). Meet demands of textile printing, electronic printing and fine graphic printing.

6.  Longer screen service life: Uniform tension reduces local stress concentration, less mesh fatigue rupture, extending service life of screen frames.

1. Textile screen printing: garment printing, home textile, canvas, luggage and embroidery matching screen plates.

2. Packaging & label screen printing: paper packages, cosmetic boxes, self-adhesive stickers, hot stamping screens.

3. Electronic industry: PCB circuit, membrane switch, thick-film circuit, solar paste printing.

4. Other industries: ceramic substrate, automotive glass, acrylic, advertising sign screen printing.

1.  Prepare aluminum screen frame and screen mesh (polyester / stainless steel mesh).

2.  Fix the aluminum frame on the worktable of stretching machine.

3.  Lay the mesh flat, clamp four edges of mesh by machine clamps.

4.  Set target tension value on the touch screen according to mesh specification.

5.  Start automatic stretching: clamps pull mesh synchronously in X/Y directions until reaching preset tension and hold.

6.  Apply screen frame adhesive on contact area between mesh and frame.

7.  Keep tension unchanged until adhesive fully cures.

8.  Cut off redundant mesh edges around frame.

9.  Unload finished stretched screen frame, ready for coating photosensitive emulsion and CTS laser plate-making.

• Manual stretching machine relies on operator experience, with large tension deviation; automatic stretching machine is recommended for high-precision multi-color overprinting.
• Main limitation: Higher initial equipment investment than manual pull machines.
