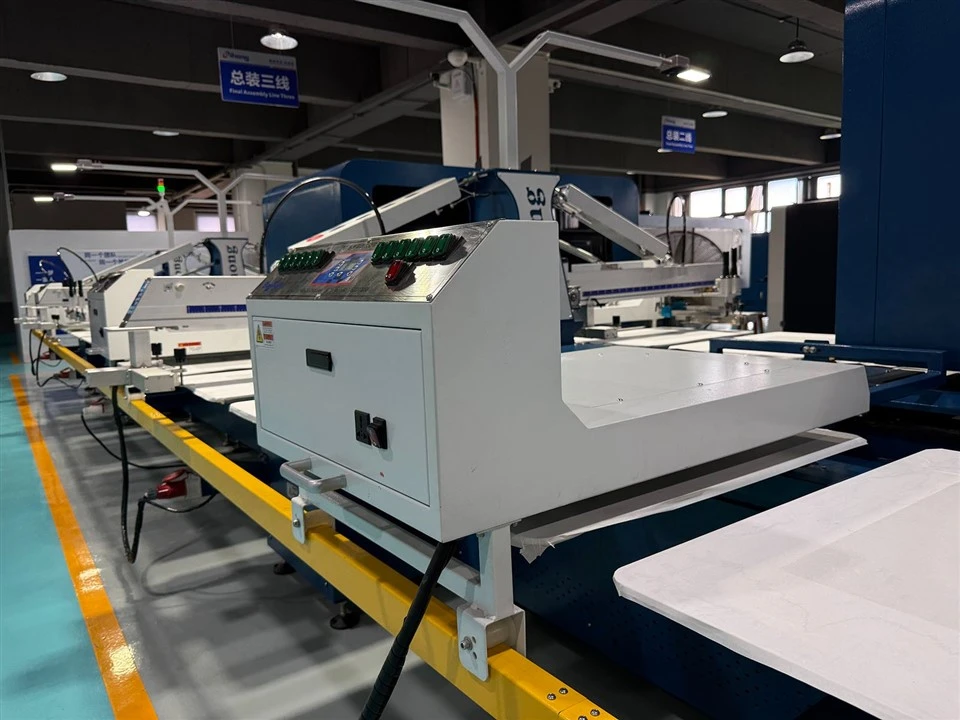

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 30 colors hybrid digital automatic screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 30 colors hybrid digital automatic screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Advanced Manufacturing Backs Our Quality

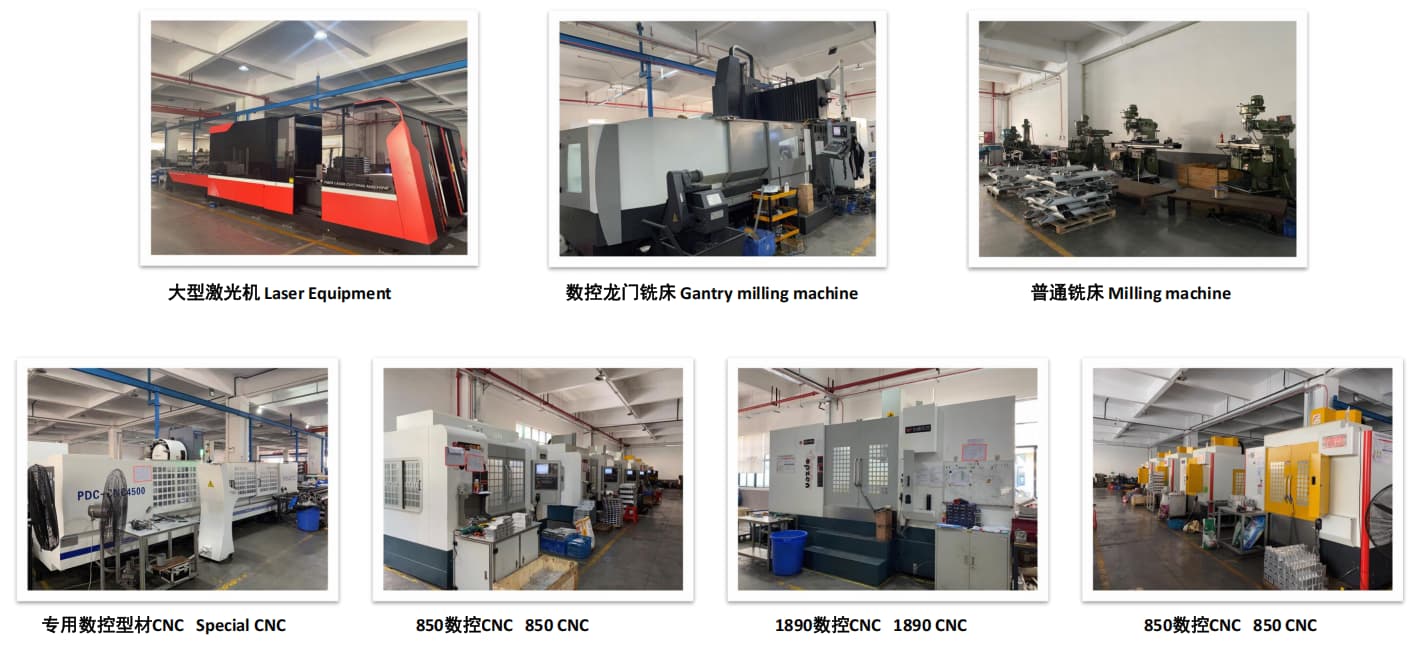

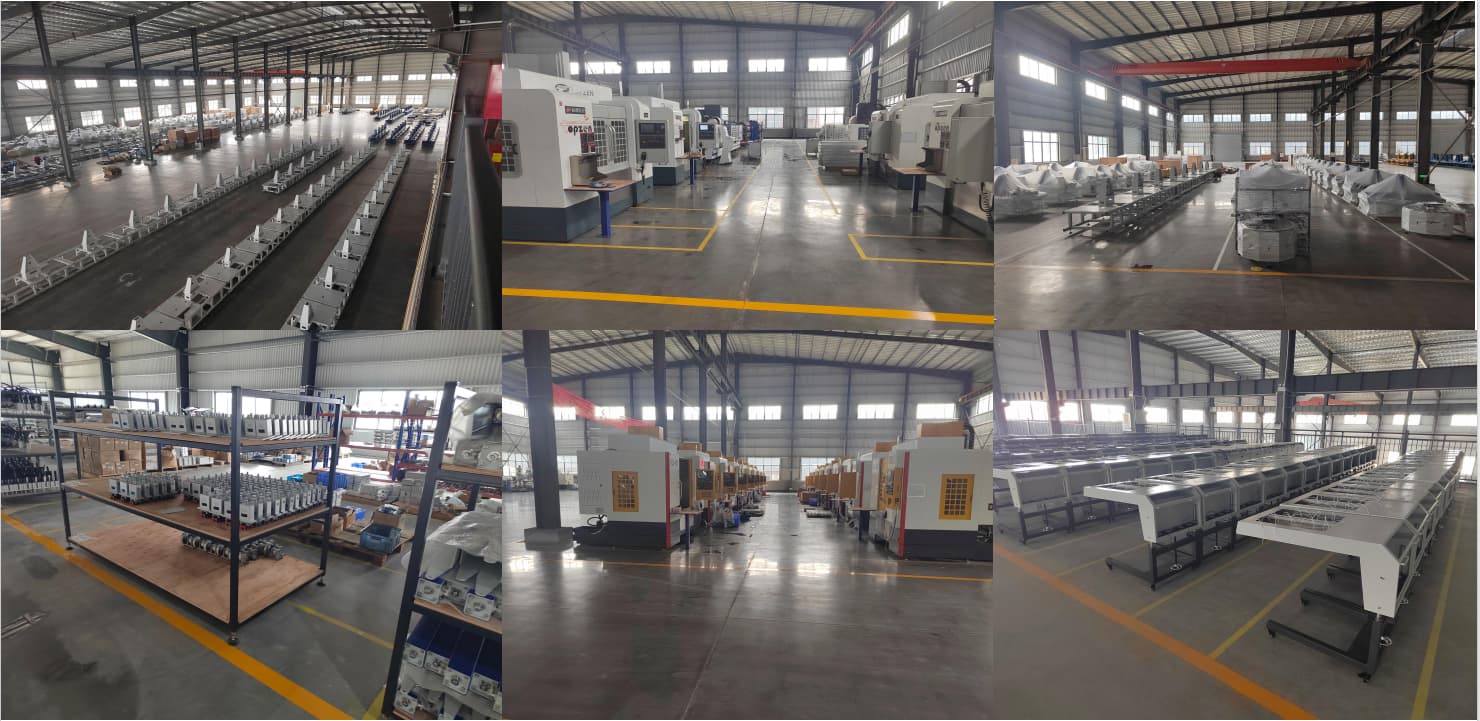

Detailed machine specifications, strong R&D capabilities and superior quality details are available for your review. We look forward to your inquiries.These precise parameters and over 100 sophisticated manufacturing equipment guarantee our superior quality. We deliver value-for-money solutions to customers and help boost production efficiency for their factories.specially in silk screen automatic machine and bihong automatic screen printing machine series, it apparently display its powerful function to the printer engaged people .
|
Type |
BH-X7-8C |
BH-X7-10C |
BH-X7-12C |
BH-X7-14C |
BH-X7-16C |
BH-X7-18C |
BH-X7-20C |
BH-X7-22C |
BH-X7-24C |
|
Color |
8colors |
10colors |
12colors |
14colors |
16colors |
18colors |
20colors |
22colors |
24colors |
|
Number of Pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pCs |
72pcs |
78pcs |
|
Pallet Size(WxL) |
S 630x865mm L1700x1050mm L2850x1200mm |
||||||||
|
Printing Image Area(WxL) |
S 580x700mm L1650x900mm L2800x1000mm |
||||||||
|
Screen Frame Size (WxL) |
S 700x1000mm L1 800x1180mm L2900x1280mm |
||||||||
|
Machine Length |
1228cm |
1450cm |
1675cm |
1898cm |
2121cm |
2344cm |
2568cm |
2790cm |
3014cm |
|
Machine Width |
S 350cm L1380cm L2420cm |
||||||||
|
Machine Height |
S 160cm L1180cm L2186cm |
||||||||
|
Machine Weight |
3600kg |
4350kg |
5100kg |
5850kg |
6600kg |
7350kg |
8100kg |
8900kg |
9650kg |
|
Printing Registration Accuracy |
±0.01mm |
||||||||
|
Pneumatic Requirement |
0.6MPa/0.8MPa (After drying and filtering can be used) |
||||||||
|
Print Head Power Driver |
400W(every printing head servo motor) |
||||||||
|
Total PowerConsumption(No Flash Cure) |
4.7kw |
6kw |
6.8kw |
7.6kw |
8.9kw |
9.7kw |
10.5kw |
12.2kw |
13kw |
|
Each Oven Max.Power |
S 15.6kw L119.5kw L232.5kw |
||||||||
|
Electric Requirement |
Three phase 380V,50Hz |
||||||||
|
Production Capacity |
600pcs/hour |
||||||||
|
Specifications |
BH-U8-8C |
BH-U8-10C |
BH-U8-12C |
BH-U8-14C |
BH-U8-16C |
BH-U8-18C |
BH-U8-20C |
|
Color |
8colors |
10colors |
12colors |
14colors |
16colors |
18colors |
20colors |
|
Number of Pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pcs |
|
Pallet Size(WxL) |
S 630x865mm L1 700x1050mm L2 850x1200mm |
||||||
|
Printing Image Area(WxL) |
S 580x700mm L1 650x900mm L2 800x1000mm |
||||||
|
Screen Frame Size (WxL) |
S 700x1000mm L1 800x1180mm L2 900x1280mm |
||||||
|
Machine Length |
1400cm |
1650cm |
1900cm |
2145cm |
2392cm |
2640cm |
2890cm |
|
Machine Width |
S 350cm L1 380cm L2 420cm |
||||||
|
Machine Height |
S 160cm L1 180cm L2 186cm |
||||||
|
Machine Weight |
3600kg |
4390kg |
5150kg |
5900kg |
6660kg |
7450kg |
8200kg |
|
Printing Registration Accuracy |
±0.01mm |
||||||
|
Pneumatic Requirement |
0.6MPa/0.8MPa (After drying and filtering can be used) |
||||||
|
Print Head Power Driver |
400W (every printing head serovo motor) |
||||||
|
Total Power Consumption(No Flash Cure) |
4.7kw |
6kw |
6.8kw |
7.6kw |
8.9kw |
9.7kw |
10.5kw |
|
Each Oven Max.Power |
S 15.6kw L1 19.5kw L2 32.5kw |
||||||
|
Electric Requirement |
Three phase 380V, 50Hz |
||||||
|
Production Capacity |
600pcs/hour |
||||||
|
Type |
BH-XD7-6C |
BH-XD7-8C |
BH-XD7-10C |
BH-XD7-12C |
BH-XD7-14C |
BH-XD7-16C |
BH-XD7-18C |
BH-XD7-20C |
|
Number of Printing heads |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Number of pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pcd |
72pcs |
|
Printing registration accuracy |
±0.1mm |
|||||||
|
Pneumatic requirement |
0.6Mpa-0.8Mpa(After drying and filtering can be used) |
|||||||
|
Printing head driver power |
400kw(Every printing head have servo motor) |
|||||||
|
Electric requirement |
Three phase 380V, 50HZ |
|||||||
|
Producton capacity |
600pcs/hour |
|||||||
|
Standard pallets |
Pallets size 630*865mm | Printing area 580*700mm | Screen frame 700*1000mm |
|||||||
|
Machine Length |
1238cm |
1462cm |
1686cm |
1910cm |
2135cm |
2359cm |
2583cm |
2807cm |
|
Machine Width |
340cm |
|||||||
|
Machine Height |
163cm |
|||||||
|
Weight |
3400kg |
4150kg |
4900kg |
5650kg |
6400kg |
7150kg |
7900kg |
8650kg |
|
Each Oven Max power |
15.6kw |
|||||||
|
Large pallets |
Pallets size 700*1050mm | Printing area 650*900mm | Screen frame 800*1180mm |
|||||||
|
Machine Length |
1397cm |
1645cm |
1893cm |
2141cm |
2389cm |
2637cm |
2885cm |
3313cm |
|
Machine Width |
370cm |
|||||||
|
Machine Height |
163cm |
|||||||
|
Weight |
3975kg |
4825kg |
5675kg |
6525kg |
7375kg |
8225kg |
9075kg |
9925kg |
|
Each Oven Max power |
19.5w |
|||||||
We use 8mm–20mm alloy sheet metal, 10%~20% thicker than most competitors' materials. It extends the machine's service life by 2–3 years and delivers higher resale value. For garment factories requiring frequent machine relocation, Bihong offers superior quality reliability. The equipment retains precise, consistent printing performance even after multiple disassembly, shipping and reinstallation cycles.
Now that you've found us! Bihong is China's leading, well-known and top-selling brand for oval screen printing machines. Why hesitate? Contact us right away to get your customized solution. You are also welcome to visit our manufacturing workshop in China in person. Your journey to greater profitability starts here!
