Standard Operating Procedure High Density / Thick 3D Embossed Printing
Document Name: High-Density 3D Raised Embossed Screen Printing instruction

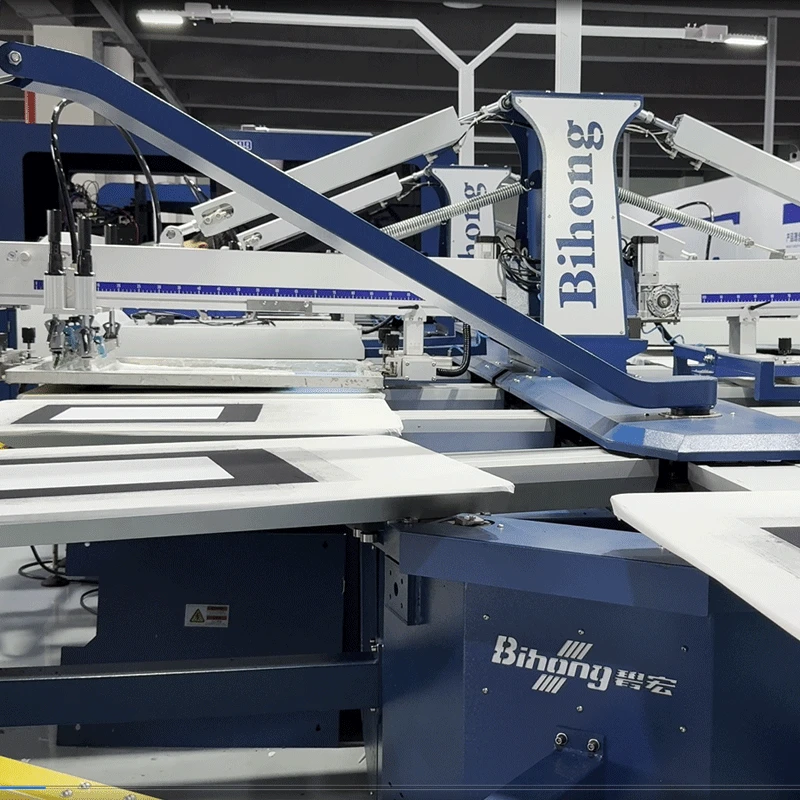

Applicable Machine: Oval Automatic Screen Printing Machine
Applicable Products: Sweatshirt Logo, Sportswear, Streetwear, Fashion Brand 3D Graphic Prints
Process Features: Multi-layer over-printing with full inter-layer drying, forming strong 3D embossed raised texture, solid stereo hand feel, high fashion and sportswear market trending effect
Process Market Level: Medium-High Difficulty, Medium Usage Frequency, High Market Demand (Sportswear & Streetwear Trend)
1. Purpose
This Standard Operating Procedure standardizes the full production process of high-density thick 3D embossed printing on oval screen printing machines. It regulates multi-station over-printing, inter-layer drying control, paste application volume, squeegee parameters and final curing standards. The purpose is to achieve uniform 3D raised embossed effect, consistent thickness, smooth surface, no bubble, no crack, no collapse, stable adhesion and excellent washing fastness. This procedure ensures stable mass production of high-end sportswear and streetwear stereo logo printing.
This instruction applies to all high-density thick embossed printing production for sweatshirts, sports apparel, streetwear brand logos and stereo graphic patterns using oval screen printing equipment.
Process Characteristics:
Form 3D stereo relief effect through multiple independent over-printing + thorough inter-layer drying
High paste thickness, strong three-dimensional sense, full and rounded logo texture
Widely used in high-end trendy sportswear, brand stereo chest logo, sleeve logo and custom stereo patterns
Process Limitation: Not suitable for ultra-thin lightweight fabrics; recommended for medium and heavy-weight knitted fabrics such as 280–380g sweatshirt fabric, sports uniform fabric.
- Paste Mixer: Responsible for high-density thick paste proportioning, viscosity adjustment, additive addition, uniform stirring and paste filtering; strictly control paste fluidity and thickening degree to ensure stacking performance.
- Screen Technician: Select high-tension thick-stencil mesh screen, complete screen tensioning, emulsion thick coating, pattern exposure and screen repairing; ensure screen thickness meets 3D stacking requirements.
- Machine Operator: Responsible for multi-station registration, layered printing parameter setting, inter-layer drying matching, real-time monitoring of stacking effect and bubble prevention during mass production.
- Drying & Curing Operator: Control tunnel temperature, inter-layer drying time and final high-temperature curing to avoid incomplete drying, layer delamination and post-production collapse.
- QC Inspector: Conduct first article stereo height confirmation, layer uniformity inspection, finished product stereo effect, surface smoothness, adhesion and fastness sampling inspection.
|
Item |
Standard Specification & Requirements |
|
High-Density Thick Printing Paste |
Special stereo thick paste / high elastic thick base paste, high solid content, good stacking property, no collapse after drying, matched with elastic color thick paste |
|
Screen Mesh |
60T–80T high-tension polyester thick mesh; thick emulsion coating to increase paste carrying capacity |
|
Squeegee |
Polyurethane squeegee, Shore hardness 70–75°, thick blade type, ensure full paste penetration and thick layer forming |
|
Applicable Fabric |
Medium & heavy weight cotton knitted fabric, polyester cotton blended sweatshirt fabric, sportswear fabric |
|
Auxiliary Additives |
Thickener, leveling agent, anti-bubble agent, curing agent (as required) |
|
Core Equipment |

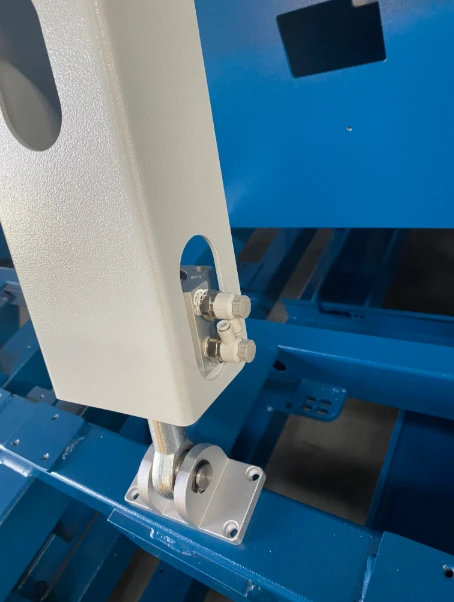

Oval screen printing machine with multi-station independent drying system (support layered inter-print drying) |
|
Testing Tools |
Viscosity tester, infrared thermometer, stereo height gauge, adhesion test tape |
Fabric Pre-treatment → Thick Stencil Screen Preparation → High-Density Paste Mixing → Multi-Layer Printing Parameter Setting → First Layer Printing + Inter-layer Drying → Second / Third / Fourth Layer Over-printing + Full Drying Cycle → Final High-Temperature Curing → 3D Effect Inspection → Adhesion & Appearance QC → Finished Product Stacking & Warehousing
