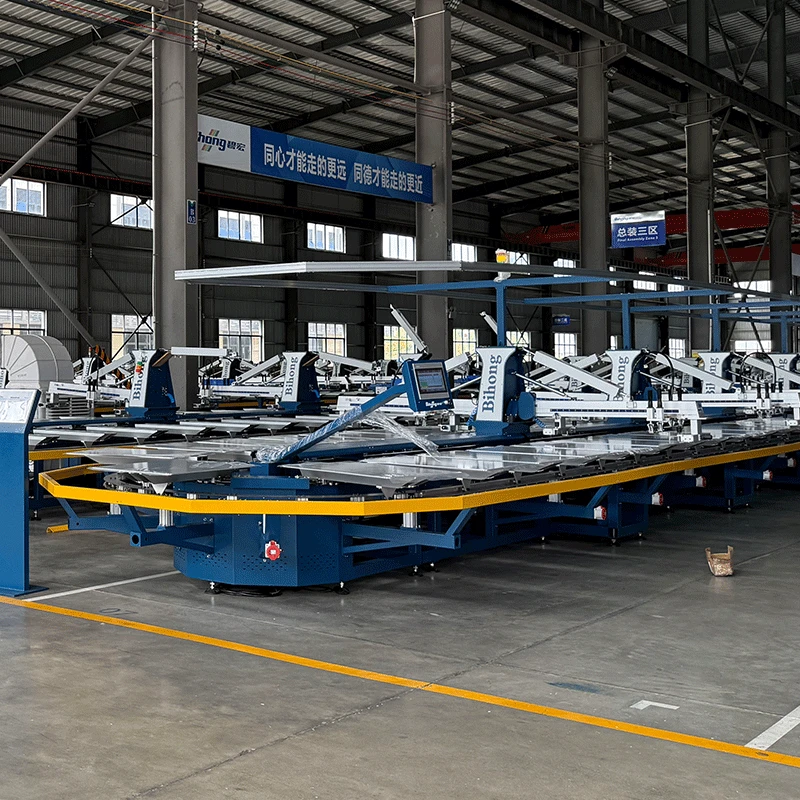

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 16 colors automatic oval screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 16 colors automatic oval screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
16 Colors Automatic Oval Screen Printing Press --- Key Advantage
The core advantage of using triangular positioning for oval screen printing
1.Precise positioning , automatic flat bed screen printing machine is good at this point
The geometric stability of three points determining a plane can avoid fabric and pattern plate deviation, ensuring accurate color matching without misalignment.
2.Efficiency improvement
Reduce debugging and rework time, adapt to different materials and fabrics, and have strong universality.
3.Consistent quality, automatic cloth printing machine guarantee this point
The patterns are consistently positioned in mass production, achieving a high degree of standardization.
Bihong 16 Colors Automatic Oval Screen Printing Press - Supported Printing Processes
Mainstream Basic Printing Processes
■ Water-based paste printing
Thin and breathable hand feel. Ideal for light-colored fabrics, widely used on T-shirts and sportswear.
■ Plastisol (glue paste) printing
Strong hiding power. Used for white under base and colorful graphics on dark fabrics; the most common process in the industry.
■ Plastisol thermal setting ink printing
Excellent fastness and wash resistance. Suitable for ready-made garments, work wear and team uniforms.
■ Silicone ink printing
High elasticity and abrasion resistance. Perfect for sportswear, footwear and products requiring high wear tolerance.
Pigment Printing Process Overview
Pigment printing (often referred to as Pigment Print) is a screen-printing process in which a synthetic resin pigment binder (paste) is mixed with color concentrate and transferred onto the fabric surface through a screen mesh, then dried and cured to form a covering printed pattern. The pigment paste forms a film on the fabric surface with strong opacity, fully covering dark substrates while delivering vivid, saturated colors. It is the most widely used printing method for T-shirts, polo shirts and hoodies.
This document is prepared for production workshops using oval / elliptical screen printing machines. It systematically covers the machine configuration, paste system, process flow, process parameters and an SOP (Standard Operating Procedure) for pigment printing. It is intended for operators, process engineers and QC inspectors. All parameters herein are industry-recommended typical values and must be fine-tuned by trial printing according to the actual fabric, paste batch and workshop environment.
1.1 Process Features
|
Item |
Description |
|
Opacity |
The paste is opaque and forms a thick film that fully covers dark fabrics with vivid, saturated colors |
|
Applicability |
Cotton, poly-cotton blends, synthetics - T-shirts, polos, hoodies; suitable for medium-to-large solid color-block patterns |
|
Hand feel |
The film has some thickness; feel is relatively stiff and breathability slightly reduced - best for non-skin-contact areas (chest, back) |
|
Fastness |
Good wash fastness and rub fastness after full curing, suitable for frequently laundered garments |
|
Limitation |
High-precision fine gradients on large areas are difficult; requires finer mesh and thinner paste layers |
2 Machine Configuration Requirements
For pigment printing, the oval / elliptical screen printing machine should meet the following configuration requirements. This section describes the capabilities the machine should provide; specific model parameters are subject to the equipment manufacturer.
2.1 Printing Units (Print Heads)
|
Item |
Recommended Requirement |
Function / Note |
|
Number of print heads |
8–16 stations for typical pigment printing (incl. underbase, main print, color layering) |
More stations favor multi-color registration and underbase + overlay processes |
|
Frame size |
Accepts common frames (e.g. 600×900 mm) with a frame locating / clamping system |
Ensures registration accuracy and quick screen change |
|
Frame registration system |
High-precision locating pins or laser registration; repeat error ≤ ±0.05 mm recommended |
Multi-color registration without misprint or see-through |
|
Color registration |
Front/back/left/right micro-adjustment, easy and intuitive |
Quick correction of registration error |
|
Head lift / printing stroke |
Pneumatic or servo control of squeegee and flood stroke, adjustable pressure |
Controls print passes, pressure and uniformity |
2.2 Squeegee System
|
Item |
Recommended Requirement |
Function |
|
Squeegee material |
Polyurethane or polyester squeegee |
Wear-resistant, good elasticity; controls paste carry-over |
|
Squeegee hardness |
55–75 Shore A typical; softer for thick printing |
Soft squeegee carries more paste, hard one less |
|
Squeegee angle |
45°–60° (adjustable) |
Affects print pressure and paste carry |
|
Squeegee pressure |
Adjustable, typically 2–5 kgf range |
Ensures paste passes through mesh without tearing the screen |
|
Squeegee / flood stroke |
Covers pattern width with 2–3 cm margin |
Ensures complete printing |
2.3 Drying and Auxiliary Configuration
|
Item |
Recommended Requirement |
Function |
|
Intermediate drying |
Infrared (IR) or hot-air unit with adjustable temperature control |
Cures each layer progressively to avoid screen sticking in multi-layer printing |
|
Final curing |
Tunnel dryer or hot-air curing, adjustable 140–170°C |
Ensures full cross-linking and adequate fastness of the film |
|
Cooling unit |
Cooling fan / cooling roller at dryer outlet |
Prevents stacking adhesion (sticking) |
|
Tension / feeding |
Adjustable tension, stable fabric feeding |
Prevents skew and wrinkling |
|
Dust removal / cleaning |
Pre-print dusting roller or static elimination |
Reduces impurities, mesh clogging and print defects |
