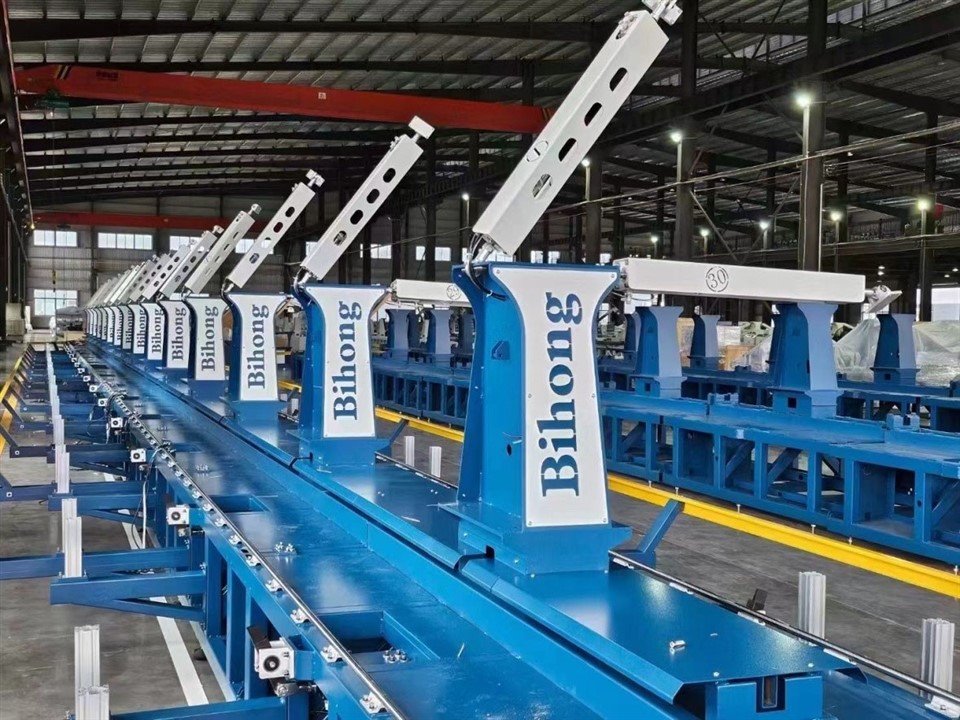

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 30 colors automatic oval screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 30 colors automatic oval screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Intelligence makes work easier
The Bihong is equipped with a large size high-resolution touchscreen designed for fast learning and intuitive operation. A clean, dtg tshirt printer modern icon system guides operators through setup and daily use with minimal training required. Integrated, multi-language tutorial screens provide step-by-step guidance directly on the display, eliminating the need to reference external manuals. This built-in intelligence streamlines on boarding and helps operators get up to speed quickly and confidently.Controls on each pallet arm feature Bihong 's classic dtg printer t shirt toggle-based inputs for easy access. All Bihong screen printing press automatic presses pioneer technology realization come standard with front-flip screen holder manual pneumatic locks, tool-free squeegee and flood bar angle adjustments, screen, squeegee and flood bar airlocks, and rear micro registration for more accurate screen printing adjustments.
|
Type |
BH-X7-8C |
BH-X7-10C |
BH-X7-12C |
BH-X7-14C |
BH-X7-16C |
BH-X7-18C |
BH-X7-20C |
BH-X7-22C |
BH-X7-24C |
|
Color |
8colors |
10colors |
12colors |
14colors |
16colors |
18colors |
20colors |
22colors |
24colors |
|
Number of Pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pCs |
72pcs |
78pcs |
|
Pallet Size(WxL) |
S 630x865mm L1700x1050mm L2850x1200mm |
||||||||
|
Printing Image Area(WxL) |
S 580x700mm L1650x900mm L2800x1000mm |
||||||||
|
Screen Frame Size (WxL) |
S 700x1000mm L1 800x1180mm L2900x1280mm |
||||||||
|
Machine Length |
1228cm |
1450cm |
1675cm |
1898cm |
2121cm |
2344cm |
2568cm |
2790cm |
3014cm |
|
Machine Width |
S 350cm L1380cm L2420cm |
||||||||
|
Machine Height |
S 160cm L1180cm L2186cm |
||||||||
|
Machine Weight |
3600kg |
4350kg |
5100kg |
5850kg |
6600kg |
7350kg |
8100kg |
8900kg |
9650kg |
|
Printing Registration Accuracy |
±0.01mm |
||||||||
|
Pneumatic Requirement |
0.6MPa/0.8MPa (After drying and filtering can be used) |
||||||||
|
Print Head Power Driver |
400W(every printing head servo motor) |
||||||||
|
Total PowerConsumption(No Flash Cure) |
4.7kw |
6kw |
6.8kw |
7.6kw |
8.9kw |
9.7kw |
10.5kw |
12.2kw |
13kw |
|
Each Oven Max.Power |
S 15.6kw L119.5kw L232.5kw |
||||||||
|
Electric Requirement |
Three phase 380V,50Hz |
||||||||
|
Production Capacity |
600pcs/hour |
||||||||
