Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 6 colors hybrid digital automatic screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 6 colors hybrid digital automatic screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Feature
1. The small head adopts a linear motor, which makes printing more accurate and smooth, with low abrasion, low noise and high efficiency.
2. Both the oval screen printing machine and the digital printer are independently produced by Bihong, which truly realizes the combination of oval machines and digital printer.
3. Multiple print head options are available: industrial-grade print heads including Ricoh G5, StarFire and Kyocera; high-precision, high-resolution Epson print heads. The Bihong Automatic Oval Screen Printing Press simplifies management of repeat orders.
4. The intelligent automatic ink scraping and ink pressing system is convenient for cleaning the nozzle and solving the problem of ink blocking of the nozzle.Industrial Direct to Garment Platform technology can benefit from it very much.
5. The intelligent ink supply external circulation system greatly reduces the risk of ink solidification.
6. The nose trolley is equipped with a high-sensitivity collision sensor, which is like equipping the precision print head with an "airbag" to ensure that the nozzles will not be damaged by accidental impact during the printing process.
7. Digital Squeegee Hybrid Printing System Equipped with imported ink to ensure the smoothness of the printing process.

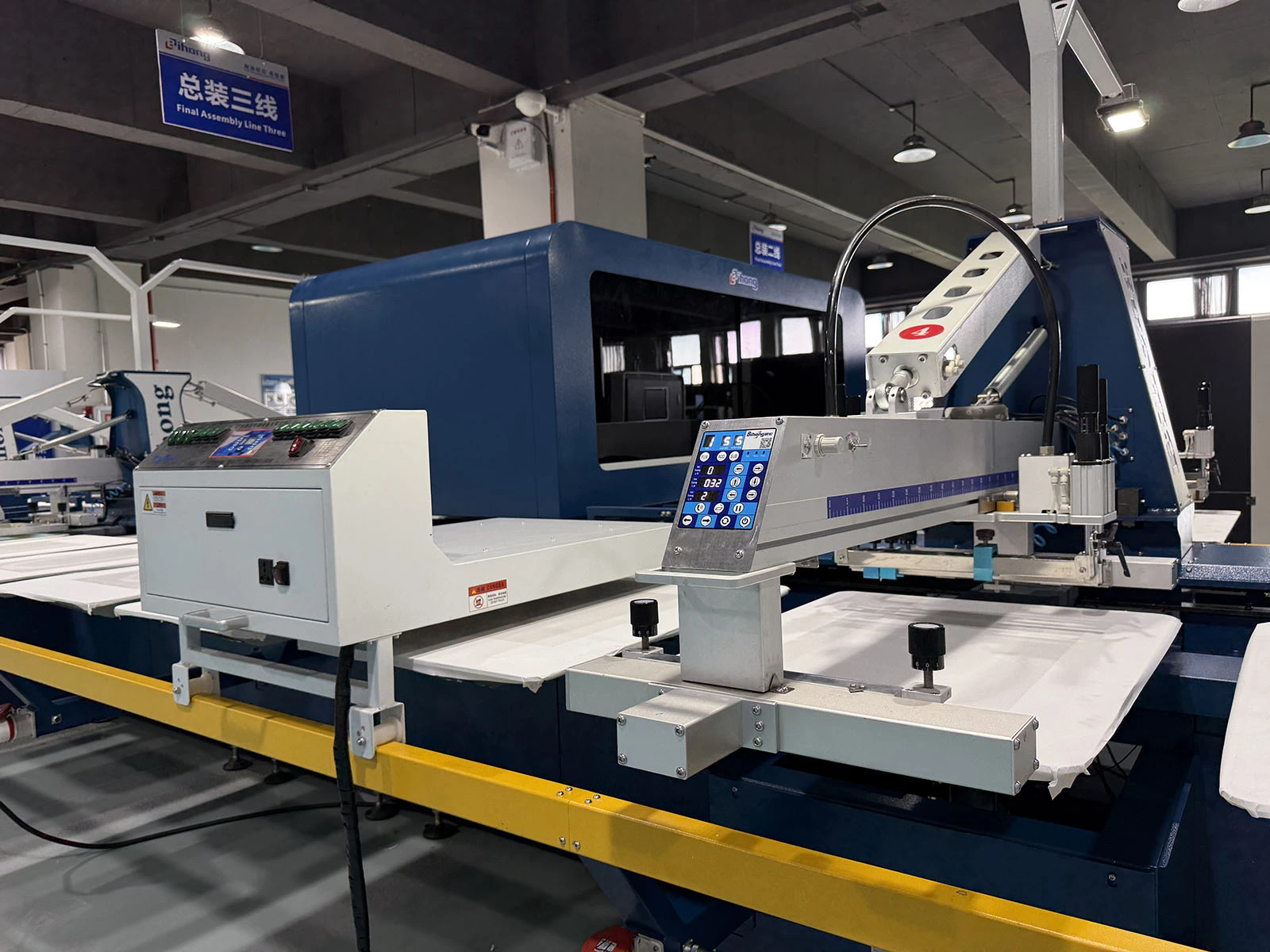

8.6 colors HYBRID Digital Automatic Screen Printing Press Fitted with globally top-tier digital print head modules.
|
Specifications |
Ricoh Gen 5-2C |
Epson |
|
Max.volume of ink drop |
7PL |
3.5PL |
|
Numbers of nozzles |
1280 |
3200 |
|
Resolution |
300dpi |
600dpi |
|
Speed of ink droplets leaving the nozzle |
6m/sec |
5m/sec |
|
Optimal printing height |
2.5mm |
2mm |
|
Inkjet width of a single nozzle |
54.1mm |
33.7mm |
|
Average droplet size |
7-35PL |
3.5-14PL |
|
Firing Frequency |
35KHZ |
15KHZ |
|
Max.gray level |
7 level |
7 level |
|
Internal circulation |
no |
no |
|
Material of print head |
PC |
PC |
|
Material of nozzle |
Polymer |
Polymer |
|
Repairable |
no |
no |
|
ProductionCapacity |
300-250pcs/h |
200-150pcs/h |
Constructed from heavy-duty sheet metal alloy, the machine remains fully operational even after 10 years of service. It features a low depreciation rate and retains strong long-term value. Investing in Bihong printers is a prudent and stable choice.
