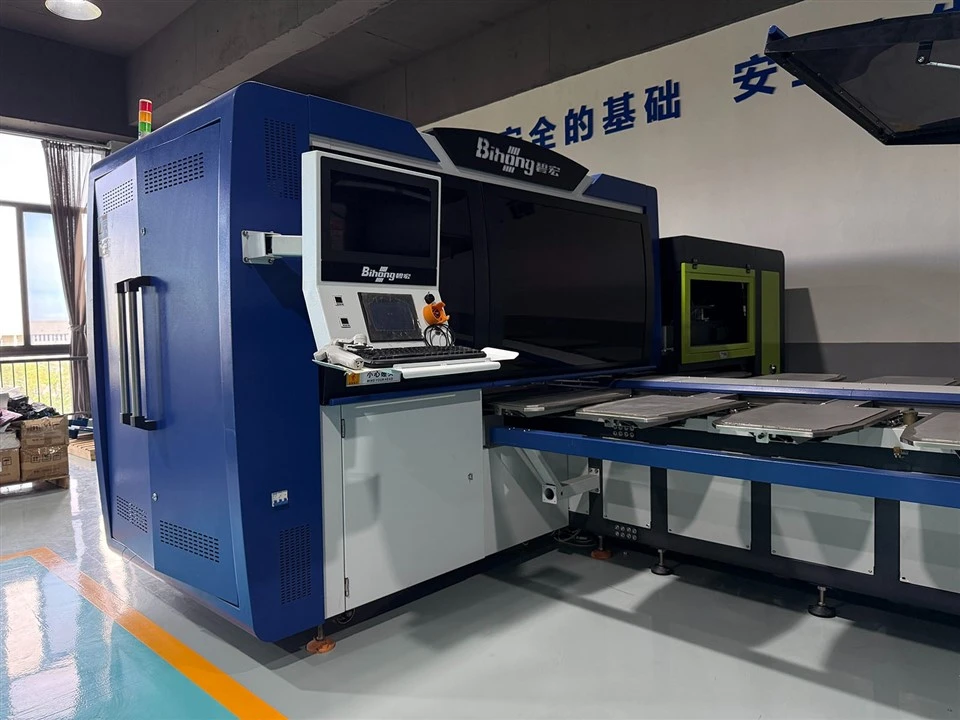

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 26 colors hybrid digital automatic screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 26 colors hybrid digital automatic screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Feature
1. The small head adopts a linear motor, which makes printing more accurate and smooth, with low abrasion, low noise and high efficiency.
2. Both the oval screen printing machine and the digital printer are independently produced by Bihong, which truly realizes the combination of oval machines and digital printer.
3. A variety of nozzles are available: industrial-grade nozzles: RicohG5,Starfire, Kyocera; high-precision and high-resolution nozzles: Epson.
4. The intelligent automatic ink scraping and ink pressing system is convenient for cleaning the nozzle and solving the problem of ink blocking of the nozzle.
5. The intelligent ink supply external circulation system greatly reduces the risk of ink solidification.
6. The nose trolley is equipped with a high-sensitivity collision sensor, which is like equipping the precision print head with an "airbag" to ensure that the nozzles will not be damaged by accidental impact during the printing process.
7. Equipped with imported ink to ensure the smoothness of the printing process.
|
Type |
BH-XD7-6C |
BH-XD7-8C |
BH-XD7-10C |
BH-XD7-12C |
BH-XD7-14C |
BH-XD7-16C |
BH-XD7-18C |
BH-XD7-20C |
|
Number of Printing heads |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Number of pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pcd |
72pcs |
|
Printing registration accuracy |
±0.1mm |
|||||||
|
Pneumatic requirement |
0.6Mpa-0.8Mpa(After drying and filtering can be used) |
|||||||
|
Printing head driver power |
400kw(Every printing head have servo motor) |
|||||||
|
Electric requirement |
Three phase 380V, 50HZ |
|||||||
|
Producton capacity |
600pcs/hour |
|||||||
|
Standard pallets |
Pallets size 630*865mm | Printing area 580*700mm | Screen frame 700*1000mm |
|||||||
|
Machine Length |
1238cm |
1462cm |
1686cm |
1910cm |
2135cm |
2359cm |
2583cm |
2807cm |
|
Machine Width |
340cm |
|||||||
|
Machine Height |
163cm |
|||||||
|
Weight |
3400kg |
4150kg |
4900kg |
5650kg |
6400kg |
7150kg |
7900kg |
8650kg |
|
Each Oven Max power |
15.6kw |
|||||||
|
Large pallets |
Pallets size 700*1050mm | Printing area 650*900mm | Screen frame 800*1180mm |
|||||||
|
Machine Length |
1397cm |
1645cm |
1893cm |
2141cm |
2389cm |
2637cm |
2885cm |
3313cm |
|
Machine Width |
370cm |
|||||||
|
Machine Height |
163cm |
|||||||
|
Weight |
3975kg |
4825kg |
5675kg |
6525kg |
7375kg |
8225kg |
9075kg |
9925kg |
|
Each Oven Max power |
19.5w |
|||||||
Bihong Oval Screen Printing Machine - Supported Printing Processes
■ Water-based paste printing
Thin and breathable hand feel. Ideal for light-colored fabrics, widely used on T-shirts and sportswear. direct to garment printing machine is capable to do this job very well.
■ Plastisol (glue paste) printing
Strong hiding power. Used for white under base and colorful graphics on dark fabrics; the most common process in the industry.
■ Plastisol thermal setting ink printing
Excellent fastness and wash resistance. Suitable for ready-made garments, work wear and team uniforms.
■ Silicone ink printing
High elasticity and abrasion resistance. Perfect for sportswear, footwear and products requiring high wear tolerance.dtg shirt printer in this application field is normal to do this process.
■ High-build / thick plate printing
Creates raised 3D graphics for embossed LOGO effects, popular in street wear apparel.
■ Puff / foaming printing
The ink expands upon heating to form raised 3D texture.
■ Discharge printing
Removes the original fabric dye to print light colors on dark cotton while preserving the soft hand feel of the textile. direct to garment machine is the best choice for it .
■ Flocking printing
Delivers a velvety, fuzzy surface on printed patterns.
Hot stamping / foil printing (requires auxiliary hot stamping / heat press unit)
Metallic luster finish for street wear and promotional apparel.
■ Halftone dot printing
Enables fine dots and gradient portrait graphics with multi-color overprinting.
■ Screen & DTG hybrid printing
The oval machine applies screen under base (white / transparent paste), while the digital unit prints color graphics. It combines the durability of screen printing with rich digital colors, making it a popular textile printing solution nowadays.
■ Applicable Substrates
Ready-made garments, knitted cut pieces, T-shirts, hoodies, caps, socks, bags, footwear, non-woven fabrics, leather and more.
