Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 28 colors automatic oval screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 28 colors automatic oval screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.
Excellent details determine quality

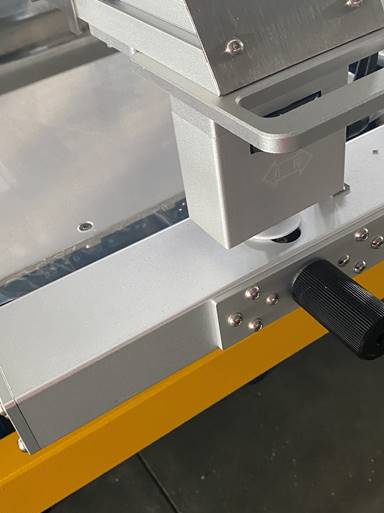

Belt: With stainless steel belt, which is not easy to rust . Most of manufacturers are using iron, which is easy to rust . The most important part is the parallelism of the slide rail, which is processed by Bihong. bihong dtg printer The precision is controlled at 2-5S, which makes the slide rail running smoothly.The most important part is the pallet trolley. There is secondary processing for pallet trolley: According to the actual
|
Type |
BH-X7-8C |
BH-X7-10C |
BH-X7-12C |
BH-X7-14C |
BH-X7-16C |
BH-X7-18C |
BH-X7-20C |
BH-X7-22C |
BH-X7-24C |
|
Color |
8colors |
10colors |
12colors |
14colors |
16colors |
18colors |
20colors |
22colors |
24colors |
|
Number of Pallets |
30pcs |
36pcs |
42pcs |
48pcs |
54pcs |
60pcs |
66pCs |
72pcs |
78pcs |
|
Pallet Size(WxL) |
S 630x865mm L1700x1050mm L2850x1200mm |
||||||||
|
Printing Image Area(WxL) |
S 580x700mm L1650x900mm L2800x1000mm |
||||||||
|
Screen Frame Size (WxL) |
S 700x1000mm L1 800x1180mm L2900x1280mm |
||||||||
|
Machine Length |
1228cm |
1450cm |
1675cm |
1898cm |
2121cm |
2344cm |
2568cm |
2790cm |
3014cm |
|
Machine Width |
S 350cm L1380cm L2420cm |
||||||||
|
Machine Height |
S 160cm L1180cm L2186cm |
||||||||
|
Machine Weight |
3600kg |
4350kg |
5100kg |
5850kg |
6600kg |
7350kg |
8100kg |
8900kg |
9650kg |
|
Printing Registration Accuracy |
±0.01mm |
||||||||
|
Pneumatic Requirement |
0.6MPa/0.8MPa (After drying and filtering can be used) |
||||||||
|
Print Head Power Driver |
400W(every printing head servo motor) |
||||||||
|
Total PowerConsumption(No Flash Cure) |
4.7kw |
6kw |
6.8kw |
7.6kw |
8.9kw |
9.7kw |
10.5kw |
12.2kw |
13kw |
|
Each Oven Max.Power |
S 15.6kw L119.5kw L232.5kw |
||||||||
|
Electric Requirement |
Three phase 380V,50Hz |
||||||||
|
Production Capacity |
600pcs/hour |
||||||||
situation of the pallet trolley installed on the pallet support, the secondary processing is carried out, and the accuracy is controlled within 20S to make it more accurate, which can offset or reduce tolerances and ensure parallelism .
Feature
1. Fully digital high-precision motor adjustment and memory positioning function to achieve fast alignment.
2. Print heads adopt an intelligent full-servo equipped with a reducer, and the print heads run with high precision, which makes the printing process more stable and less noisy.
3. Print heads adopt double pneumatic automatic lifting screen, making the air pressure more stable, instead of manually lifting the screen, so that the operator saves time and effort.
4. The screen can be quickly unloaded and installed, overcoming the difficulty of unloading and not limited by the screen frame: the size of the screen frame can be used universally.
5. Pallets adopt 8mm solid platen combined with the unique support method independently developed by our company, so that the pallet will never be deformed.
6. Parallel moving oven makes the overall appearance of the machine look good, and it is convenient for operators to clean.
7. High nesting accuracy: advanced technology, mature and stable. Machine nesting accuracy error is within ±0.01 mm, effectively improving the quality rate of printed products and the printing quality.
8. Suitable for multiple printing processes; using the arrangement of print head, oven and cooling, various pastes can be used, especially for different printing processes such as water-based ink, plastisol ink, thick plate, discharge, puff, etc.
