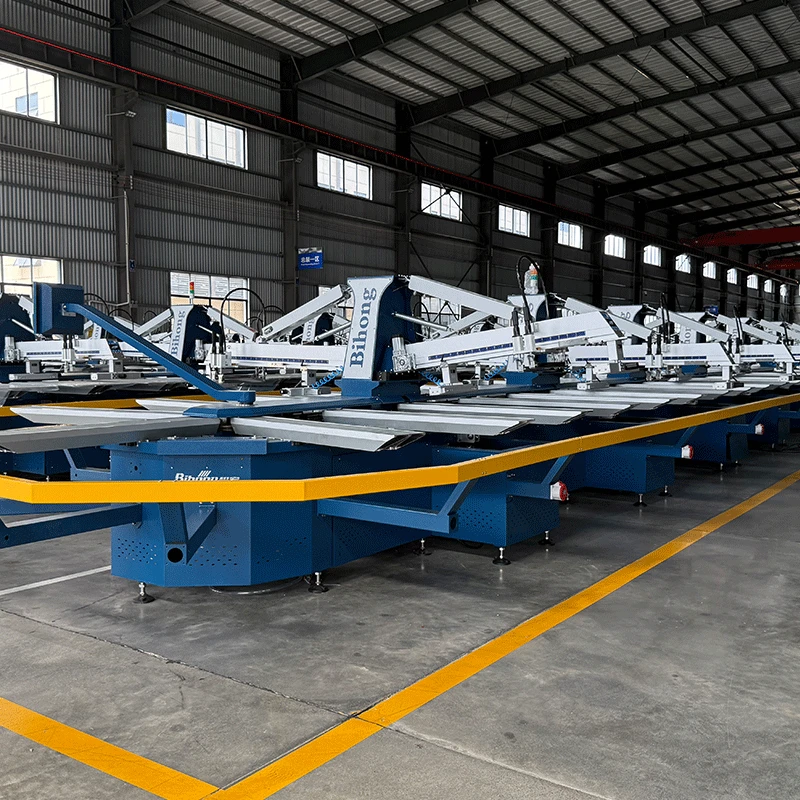

Guangdong Aces Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 18 colors automatic oval screen printing press in China. With abundant experience, we warmly welcome you to wholesale the newest 18 colors automatic oval screen printing press from our factory. All customized machines are with high quality and low price. Welcome to contact us for quotation.

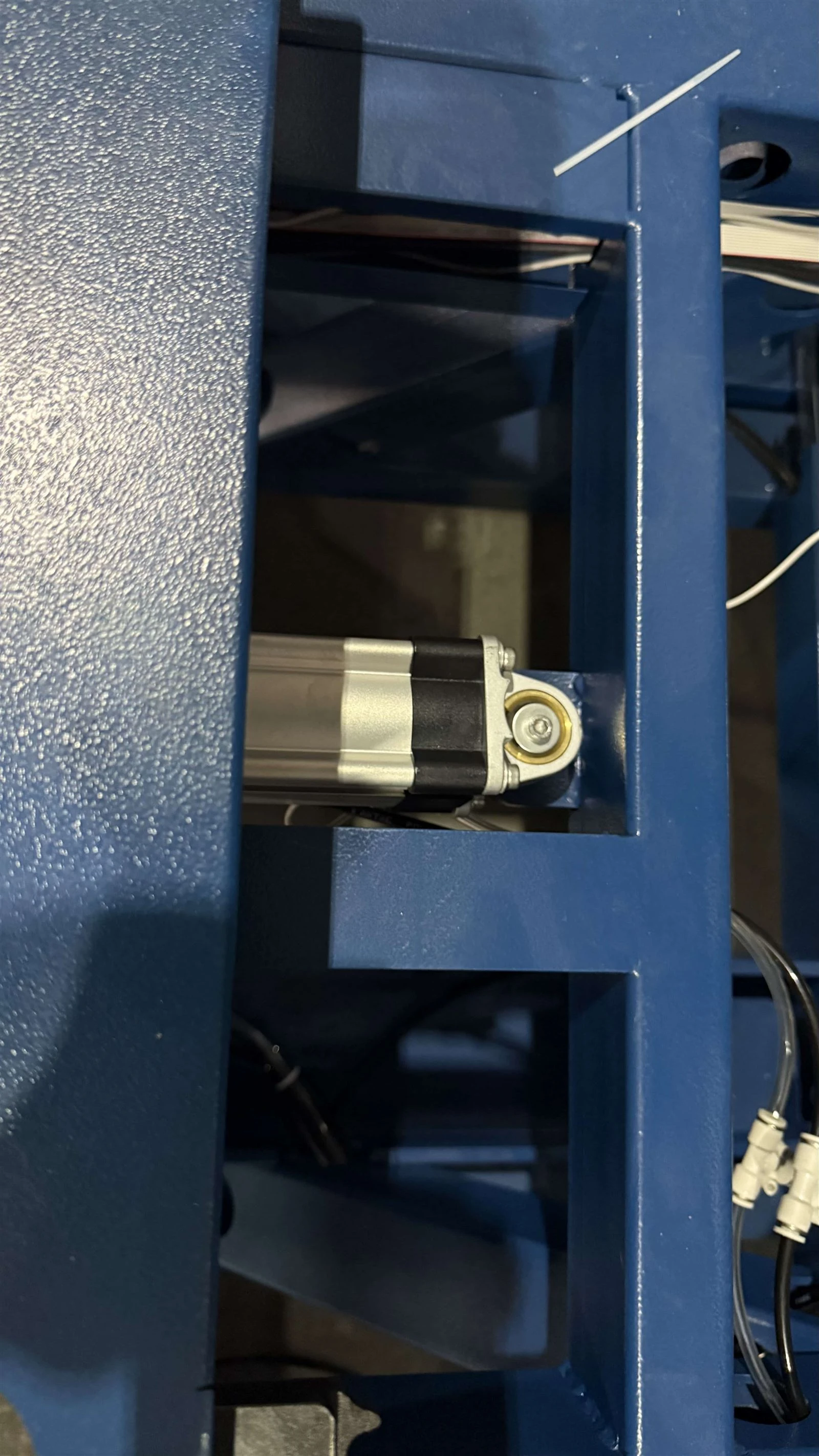

Unique Selection and advantages of positioning cylinders:
1.Specialized selection for positioning
1.For general positioning, use SC50X50 (pull rod type, low cost); for intermediate locking, choose SCJ50X50 (with locking device).
2.For compact installation, choose ACQ50X50 (thin cylinder) or SE50X50 (without tie rod, ISO15552 standard).one of big character from automatic screen press machine .
2.core strengths
1. Sufficient thrust (0.6MPa, about 1178N), suitable for three-point force bearing with triangular positioning in oval screen printing .
2. Fast repeat response, efficient positioning-resetting cycle, raise production efficiency.
3. The buffer is adjustable to avoid positioning impact that may cause fabric displacement or equipment wear. automatic shirt printing machine make the garment factory enjoy the favor a lot.
4. Temperature and pressure high resistance, ensuring stable long-term operation.
Bihong Oval Screen Printing Machine - Supported Printing Processes
Special Effect Processes (Core Advantages of Oval Machines)
■ High-density / thick plate printing
Creates raised 3D graphics for embossed LOGO effects, popular in street wear apparel.
■ Puff / foaming printing
The ink expands upon heating to form raised 3D texture.
■ Discharge printing
Removes the original fabric dye to print light colors on dark cotton while preserving the soft hand feel of the textile.
■ Flocking printing
Delivers a velvety, fuzzy surface on printed patterns.
■ Hot stamping / foil printing
Metallic luster finish for street wear and promotional apparel.
■ Halftone dot printing
Enables fine dots and gradient portrait graphics with multi-color overprinting.
Combined Process
■ Screen & DTG hybrid printing
The oval machine applies screen under base (white / transparent paste), while the digital unit prints color graphics. It combines the durability of screen printing with rich digital colors, making it a popular textile printing solution nowadays.
■ Applicable Substrates
Ready-made garments, knitted cut pieces, T-shirts, hoodies, caps, socks, bags, footwear, non-woven fabrics, leather and more.
Pigment Printing Pastes and Auxiliaries Required
1.Main Paste Types
|
Paste |
Description |
Application |
|
White pigment paste |
White opaque paste based on high-hiding fillers (e.g. titanium dioxide) |
Underbase, white base overlay, white solid-color patterns |
|
Clear base (transparent) |
Little or no hiding filler; high transparency |
Overlay on dark colors, carrier for pearl/glitter special effects |
|
Colored pigment paste |
Clear/white base blended with color concentrate |
Printing of various solid-color patterns |
2. Color Concentrates and Auxiliaries
|
Category |
Common Types |
Function |
|
Color concentrate |
Eco-friendly pigment concentrates (azo, phthalocyanine etc.), light-fast and wash-fast |
Provide color |
|
Curing agent / crosslinker |
Isocyanate or amino-resin type |
Improve wash fastness and rub resistance; add by ratio |
|
Thickener |
Polyurethane / acrylic thickener |
Adjust paste viscosity to prevent running |
|
Flow aid |
Polyether-modified silicone etc. |
Improve leveling after printing, reduce mesh marks |
|
Defoamer |
Silicone defoamer |
Eliminate air bubbles from mixing, prevent pinholes |
|
Softener |
Silicone softener |
Improve hand feel, reduce film stiffness |
|
Anti-sublimation agent |
For deep polyester color |
Prevent disperse dye sublimation bleeding |
3.Typical Mixing Recipes (Reference)
Ratios are by weight. Different manufacturers' paste and color systems differ; the following are common industry reference ranges. Confirm by trial printing before mass production.
|
Application |
White Paste |
Clear Base |
Color Conc. |
Curing Agent |
Auxiliaries |
|
White underbase |
80–90 |
10–20 |
- |
1–3 |
Thicken/defoam as needed |
|
Solid color (light) |
60–80 |
20–40 |
5–10 |
1–3 |
As needed |
|
Solid color (dark/overlay) |
20–40 |
60–80 |
5–10 |
1–3 |
As needed |
|
Clear overlay / pearl |
- |
90–100 |
as needed |
1–2 |
As needed |
Note: Color concentrate is usually 5–10% of total paste weight. Excessive curing agent can cause premature thickening, mesh clogging or a brittle film; always follow the paste manufacturer's recommended ratio and prepare fresh for immediate use.
4.Paste Storage and Handling
Store pastes sealed in a cool, dark place (5–30°C recommended) to prevent skinning, caking and settling. Stir thoroughly before use. Prepared paste should be used within 4–8 hours; prolonged exposure causes thickening, skinning or air entrapment. Before mass production, test a small sample of each new paste/color batch for color and fastness consistency.
